Yacht Consultants Asia (HK) Ltd., established to address the needs of merging Western and Asian yachting communities.

Gino Gandino Yacht Design

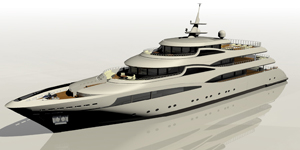

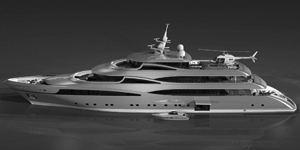

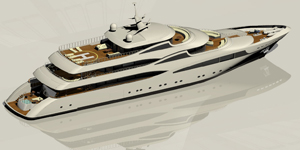

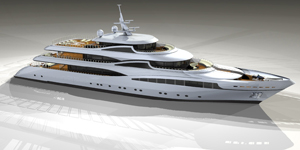

The 2010 MAXIMUS 196' (60M) Flybridge Motor Yacht

YCA (HK) Ltd. presents this superbly detailed Superyacht design by the Italian design teams of Gino Gandino Yacht Design,and Aleph Design (Carlo Messera N.A.)

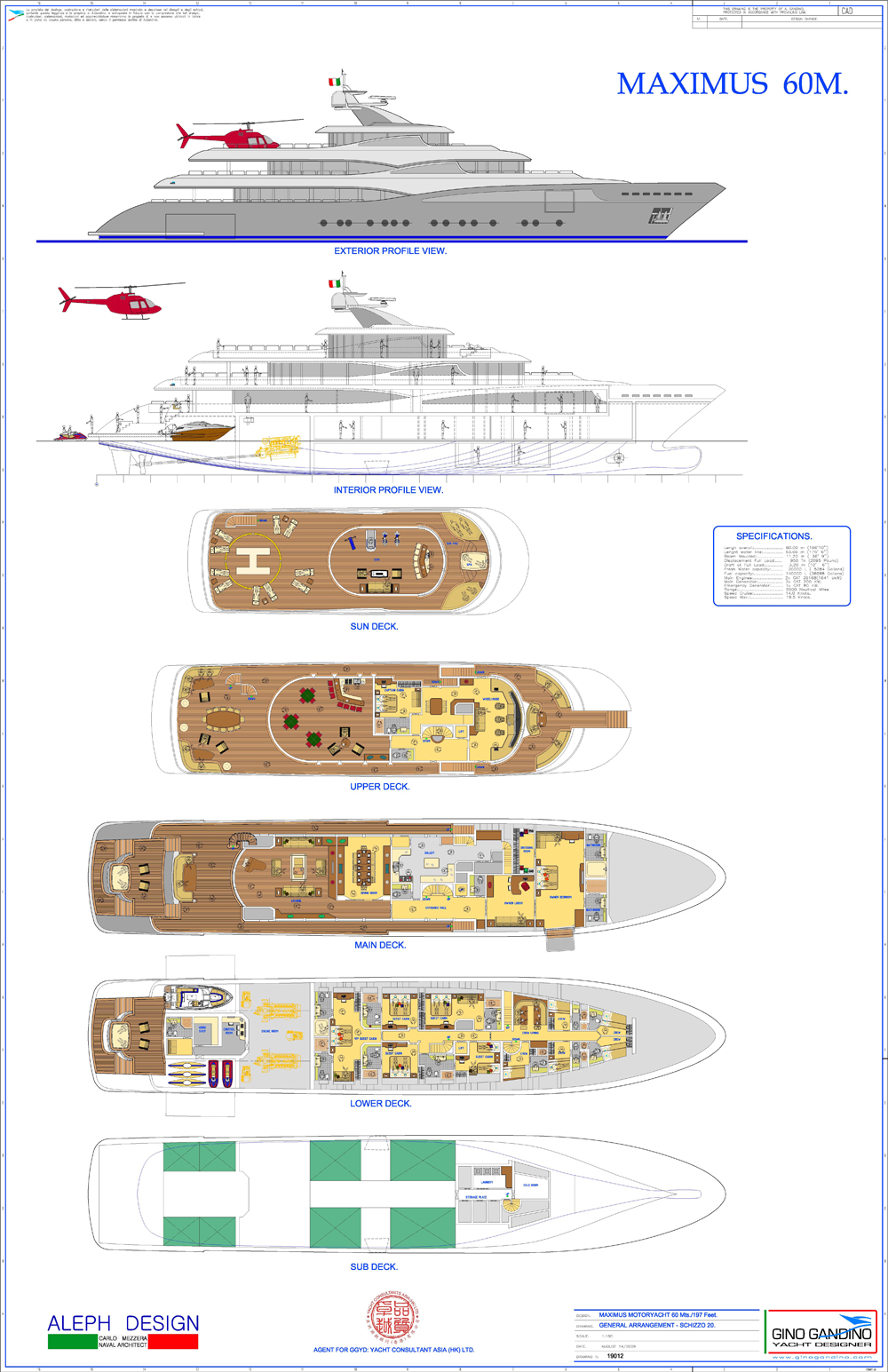

As shown by the preliminary Profiles and General Arrangements below, the MAXIMUS 196’ Flybridge Motor Yacht offers modern the very latest in European exterior styling, and luxurious Interior.

                                                                                       General Arrangements / Specifications

Principal Characteristics

  • Length Overall: 60m(196ft 10in)
  • Length Water Line: 53.66m (176ft 6in)
  • Beam Molded: 11.20 m (36ft 9in)
  • Displacement (Full Load): 950Tn (2095K lbs.)
  • Draft (Full Load): 3.20m (10ft 6in)
  • Fresh Water Capacity: 20000L (5284 gals)
  • Fuel Capacity: 14000000 L (36958 gals)
  • Main Engines: 2 * CAT 3516B (1641 bkw)
  • Main Generator: 2 * CAT 200KW
  • Emergency Generator: 1 * CAT 80KW
  • Range:5500 Nautical Miles
  • Speed Cruiser: 14.0 Knots
  • Speed Max: 16.5 Knots








                        Click to make larger






                                                                                                            Main Characteristics

Sun Deck

  • Spa /2 large Tanning Beds
  • Full Gymnasium/Lounge and Wet Bar
  • Helicopter Landing Pad


Upper Deck

  • Pt./Stbd./Center Settees Steps Down
  • Triple Helm Station with Settee/Table
  • Ensuite Captain’s Cabin/Queen Berth
  • Elevator Down/ Stairs Down
  • Large Interior Wet Bar seating 7-8
  • Lounge Interior Area with Games tables
  • Aft Deck Exterior Dining Table/Seating for 12, Port /Stbd. L shaped Settees for 10 Stairs down/up

Main Deck

  • Full Ship’s Beams’ width Owners Stateroom with, large walk- in Closets.
  • 2 Full sized washrooms
  • Owner’s Lobby and Fold Down Hull Side Balcony
  • Entrance Hall – Stbd. Side, Elevator, Stairs Up/Down
  • Full Kitchen with cold rooms and Central Island.
  • Formal Dining Room with Buffets
  • Main Lounge with Entertainment Area, Piano, large Curved Glass doors to Aft Deck.
  • Aft Deck Large Settee with Dining Table, Stairs Down to Spa Deck and Spa, Stairs further down to Swim Platform.

Lower Deck

  • Dedicated Crews Quarters including Berths for10 crew, Living Area, ensuite heads, Galley, Circular staircase.
  • Four Ensuite double VIP Staterooms
  • VIP Guest Stateroom (full beam with 2 full bathroom areas.
  • Engineer’s Cabin(ensuite), workshop and Main Control Room (MCR)
  • Port Boat Garage with fold down beach
  • Starboard Toy Garage with fold down Beach.
  • Spa Deck with Spa, stairs down to Swim Platform.

Hull (Sub) Deck

  • Ships Laundry
  • Cold Rooms
  • Storage Rooms



Click on PDF logo for much better detail of the photos above.

Still in the early design stage, the MAXIMUS 196’ Flybridge Motor Yacht is ready for final input from its future Owner and Builder for further cosmetic details...... or OK to proceed just as she is!

For further general information or terms regarding The 2010 MAXIMUS 196' (60m) Flybridge Motor Yacht design package, please contact us by e mail or fax.


The Macao 112' (34 meter) Tri-Deck Motor Yacht

To meet the ever increasing demand for new Yacht Designs in excess of 100' YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino Yacht Design (Italy). As you can see by the preliminary General Arrangements below, the Macao 112' Tri-Deck Motor Yacht offers modern European Styling, a Great preliminary view to a well thought out Interior Arrangement. We will work closely with owner of this drawing package to provide the best Yacht to suit your Client' needs, offering the maximum opportunity in cosmetic design and equipment selection. This design package will require 8-9 months to complete, offering the buyer maximum imput from a cosmetic design and equipment selection opportunity.

General Arrangements / Specifications

Principal Characteristics

  • Length Overall: 34.15 m (112 ft)
  • Beam: 6.71 m (22 ft)
  • Draft: 2.15 m (7 ft)
  • Displacement: 85 ton (187,000 lb.)
  • Fresh Water Cap.:2600l (685 US gal.)
  • Fuel Capacity: 16000l (4225 US gal.)

General Arrangement

  • Accommodation for12-14
  • Spacious Galley with Settee and Table
  • Formal Dining Room
  • Wet Bar / Entertainment Area
  • Spacious Saloon
  • Master Ensuite Stateroom
  • VIP Ensuite Stateroom
  • 2 Ensuite
  • Guest Staterooms
  • Crews Quarters forward
  • Spacious Bridge Deck with Pool
  • Aft Deck Settee for 8

  • Dinghy / Toy Garage
  • Huge fold out deck over the Swim Platform

Still in the preliminary design stage, the Macao 112' Tri-Deck Motor Yacht awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!

For further general information or terms regarding EXCLUSIVE ownership of The Macao 112'Tri-Deck Motor Yacht design package, please contact us by e mail or fax.


The Shenzhen 107' (33 meter) Tri-Deck Motor Yacht

Sister to the Macao 112', this vessel is also designed by Gino Gandino Yacht Design (Italy), to meet the ever increasing demand for new Yacht Designs in excess of 100'. In addition, it can fill out your Yacht product line to meet the varying needs of your clients.

As you can see by the preliminary General Arrangements below, the Shenzhen 107' Tri-Deck Motor Yacht offers modern European Styling, a Great preliminary view to a well thought out Interior Arrangement. We will work closely with owner of this drawing package to provide the best Yacht to suit your Client' needs, offering the maximum opportunity in cosmetic design and equipment selection. This design package will require 8-9 months to complete.

General Arrangements / Specifications

Principal Characteristics

  • Length Overall: 32.6 m (107 ft)
  • Beam: 6.71 m (22 ft)
  • Draft: 2.15 m (7 ft)
  • Displacement: 85 ton (187,000 lb.)
  • Fresh Water Cap.:2600l (685 US gal.)
  • Fuel Capacity: 16000l (4225 US gal.)

General Arrangement

  • Accommodation for 12-14
  • Spacious Galley with Settee and Table
  • Formal Dining Room
  • Wet Bar / Entertainment Area
  • Spacious Saloon
  • Master Ensuite Stateroom
  • VIP Ensuite Stateroom
  • 2 Ensuite
  • Guest Staterooms
  • Crews Quarters forward
  • Spacious Bridge Deck with Pool
  • Aft Deck Settee for 8

  • Dinghy / Toy Garage
  • Huge "fold out" deck over the already spacious Swim Platform

Still in the design stage, the Shenzhen Tri-Deck Motor Yacht awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!

For further general information or terms regarding EXCLUSIVE ownership of The Shenzhen 107'Tri-Deck Motor Yacht design package, please contact us by e mail or fax.

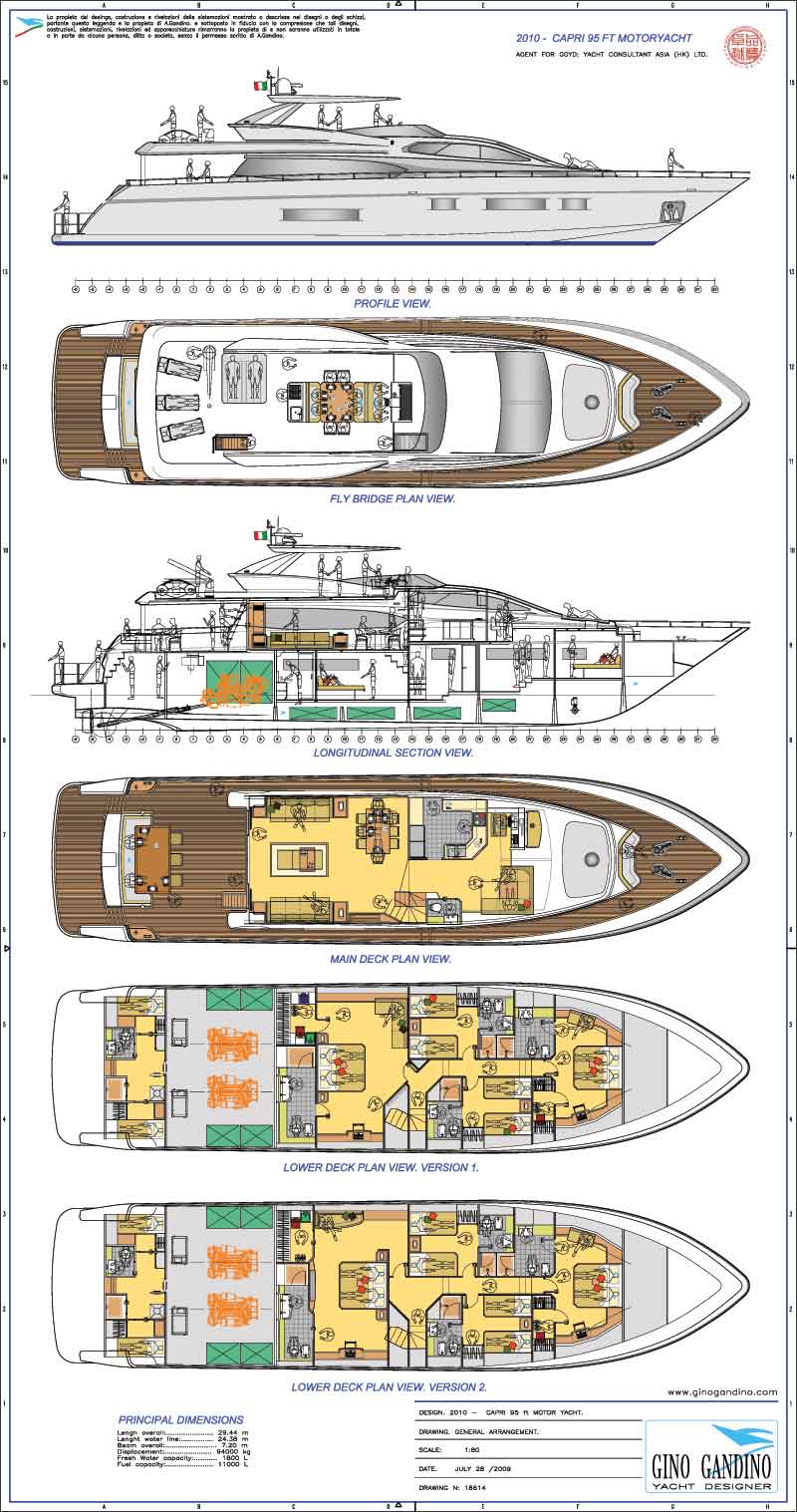

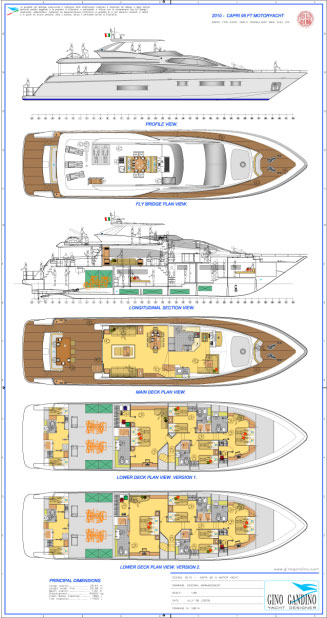

The 2010 CAPRI 95' (29.44 meter) Fly Bridge Motor Yacht

YCA (HK) Ltd. is pleased to offer this remarkable new design by the Gino Gandino Design Team. As you can see by the Profiles and General Arrangement Options below, the CAPRI 95’ design package offers modern European Styling and luxurious comfort simultaneously.

Based on the successful Marco Polo 85’, the 2010 Capri 95’ offers creative use of a much larger interior space, adding a well thought out permanently covered Flybridge Arrangement. We feel this vessel is perfectly suited for the Middle East Gulf and south Asian seas.

This drawings package offers a very high level of detail that that will “fast forward” your production and Marketing abilities.

Click to make larger

Principal Characteristics

  •  Length Overall: 29.44m (95ft)
  •  Water Line Length: 24.38m(80ft)
  •  Beam:7.20 m (23ft 62in)
  •  Displacement: 94000kg (34.140lb)
  •  Fresh Water Capacity: 1800L (563 US gals)
  •  Fuel Capacity: 11000L (3438 US gals)
  • Important Features

  • Roomy Flybridge area featuring a Hard Top Bimini Top, Dining settee and table for 8-10, large Tanning bed, Nav. table at the double upper Helm station.
  •  Large Tanning bed on foredeck.
  •  Fore Deck U shaped Settee.
  •  Roomy dining settee with Hi/Low table, Stbd. side Settee, Galley and Helm Station located on the main deck.
  •  A large ensuite Master Stateroom.
  •  VIP Ensuite Stateroom located forward.
  •  2 Inter. General Arrangements to choose from.
  •  Large Exterior Settee and Dining accommodations for 6-8, located on the aft deck.
  •  Crews quarters aft.
  •  Good sized Swim Platform.
  •

    Still in the design stage, the CAPRI 95’ awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!

    This base design package can be completed within 6 months and ready to start mould buildings and market upon the purchasing contract is signed.

    For further general information or terms regarding EXCLUSIVE ownership of CAPRI 95’ Fly Bridge Motor Yacht design package, please contact us by email or fax.


    The 2012- PROGRETTO 27 Meter (89Ft) Motor Yacht

    YCA (HK) Ltd. is pleased to offer a very special design by Gino Gandino’s Design Team, in Buenos Aries. As you can see by the preliminary General Arrangements and Renderings below, the 27m design package, offers “state of the art” modern European Styling, with well thought out Interior Arrangements… in Standard 2 versions, with the ability to create custom arrangements and specific equipment selections, at your request.

    Although the complete design package will require 6-8 months to complete, lines and tooling detail can be available very soon, thereby “fast forwarding” your Production and Marketing abilities.

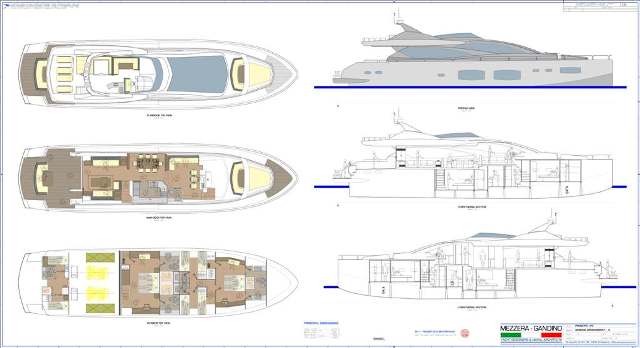

    General Arrangements & Principal Characteristics - Version A

    Principal Characteristics:
    • Length Overall : 27.03m (89ft)
    • Length of waterline: 25.45m (83.5ft)
    • Beam Overall: 6.8m (22.3ft)
    • Displacement: 94,000kg
    • Fresh Water Capacity : 2000L
    • Fuel Capacity : 10000L
    Important Features
    • Staterooms: 5 including full beam Master and VIP Staterooms
    • Heads: 5 ensuite with showers, 1 day head
    • Crew's Qtrs: Aft with w/c
    • Modern Galley with upper cabinetry
    • Large dining area
    • Forward deck Sun tanning Bed
    • Big Cockpit with seating for 8-10
    • Roomy Fly Bridge with seating for 10
    • Fly Bridge Wet Bar and large Nav. Station, lounge chairs, large tanning bed ,highly stylized Radar Arch



    General Arrangements & Principal Characteristics - Version B

    Click on PDF logo for much better detail of the photos above.

    Principal Characteristics:
    • Length Overall : 27.03m (89ft)
    • Length of waterline: 25.45m (83.5ft)
    • Beam Overall: 6.8m (22.3ft)
    • Displacement: 94,000kg
    • Fresh Water Capacity : 2000L
    • Fuel Capacity : 10000L
    Important Features
    • Staterooms: 5 including full beam Master and VIP Staterooms
    • Heads: 5 ensuite with showers, 1 day head
    • Crew's Qtrs: 2 Aft with shared w/c
    • Modern Galley with upper cabinetry
    • Large dining area
    • Forward deck Sun tanning Bed
    • Big Cockpit with seating for 8-10
    • Roomy Fly Bridge with seating for 10
    • Fly Bridge Wet Bar and large Nav. Station, lounge chairs, large tanning bed ,highly stylized Radar Arch

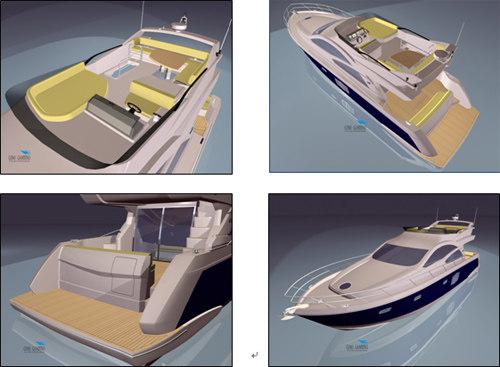

    Rendering Samples

    Still in the design stage, the PROGRETTO 270 Meter awaits final input from its future builder for some cosmetic details, or the OK to proceed as is in either Standard Version.

    This base design package can be ready to start Yacht production within 3 months and will be completed in 6-8 months

    For further general information or terms regarding GLOBAL EXCLUSIVITY of the 2012-PROGRETTO 270 Motor Yacht design, please contact us by e mail or fax.


    The Marco Polo 85' (26.15 meter) FRP Motor Yacht.

    As a collaborative effort between Yacht Consultants Asia (HK) Ltd. and Gino Gandino Yacht Design (Italy), we offer a complete Yacht design package, designed and engineered to RINA Standard.

    This "turnkey" design and engineering package, represents a valuable opportunity to any yacht manufacturing company or individual, seriously interested in developing or increasing a high quality YACHT product line.

    The package is available now, allowing you to start marketing, estimating, procurement and production immediately.

    This Design Package Includes

    • Sleek Italian styling combined with high performance.
    • Length Overall: 26.15 m (85ft 10 in)
    • Beam: 6.47m (21ft 3 in)
    • Draught (Freeboard to Deck): 2.81 m (9ft 3 in)
    • Draft: 1.45m (4ft 9in)
    • Displacement: 62.2 t (137000 lb)
    • Fresh Water Capacity: 2560 L (676 US gals)
    • Grey Water Capacity: 2050 L (541 US gals)
    • Fuel Capacity: 7800 L (2060 US gals)
    • Engine Option 1 (as drawn): Twin MTU 1150 HP Speed: 23 Knots
    • Engine Option 2 (as drawn): Twin MTU 1300 HP Speed: 25 Knots
    • Designed for Twin MTU or MAN Engines or optional modification for CAT.
    • Over 145 AutoCAD Drawings available on CD-Rom, ready for your plotter.
    • .9 meter (1:24) scale, professionally built FRP Yacht Model included.
    • Marketing Renderings included.
    • EXCLUSIVE ownership of this design is available, as an Option.
    • Ongoing support from Yacht Consultants Asia (HK) Ltd and Gino Gandino Yacht Design (Italy) is available, as an Option.

    For further information or terms regarding EXCLUSIVE or Non Exclusive ownership of this splendid design package, please contact us by e mail or fax.

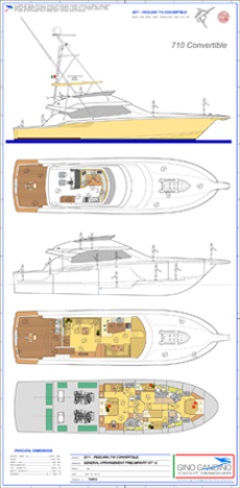

    The 2011- Pescara 710 Convertible Motor Yacht

    YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino’s Design Team, in Buenos Aries. As you can see by the preliminary General Arrangements  and Renderings below, the Pescara 71’ design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will “fast forward” your production and Marketing abilities.

    This design package will require 5-6 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.

                                                                                           General Arrangements / Specifications

                                                                                              Principal Characteristics

    • Length Overall: 22.81 m ( 71ft )
    • Beam: 5.90 m (19ft  36 inch)
    • Draft: 1.65 m (5ft 4inch)
    • Displacement: 45 ton (90,000 lb.)
    • Fresh Water Cap.: 1500l (396US gal.)
    • Fuel Capacity: 7500l (1981 US gal.)
    • Engine: 2 X 1500hp

    Important Features

    • Staterooms: 3 plus Crew
    • Heads: 3 ensuite with showers
    • Crew’s Qtrs: Aft with w/c
    • Modern Galley with upper cabinetry
    • Forward deck Sun tanning Bed
    • Big Cockpit with Settee for 6
    • Roomy Fly Bridge with seating for 10
    • Fly Bridge Wet Bar and Nav.Station
    • Highly Stylized Radar Arch
      Vertical hullside windows







                         Click to make larger


     Still in the design stage, the Pescara 71’ awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!

    This base design package can be ready to start Yacht production within 1 months and will be completed in 5-6 months

    For further general information or terms regarding EXCLUSIVE ownership of 2011-Pescara 710 Convertible Motor Yacht design package, please contact us by e mail or fax.


    The Hainan 66' (20.04 meter) Fly Bridge Motor Yacht

    YCA (HK) Ltd. offers another great EURO design by Italian Designer Gino Gandino. As you can see by the General Arrangements and Renderings below, the Hainan 66’ (20.04 meter) Flybridge Motor Yacht design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will "fast forward" your production and Marketing abilities. This updated design package is complete and ready to start marketing, procurement and tooling, unless the buyer requires changes. As two Yachts of similar earlier versions of this design are launched and in service in the Dubai area, with a 3rd under presently under construction… we know it’s popular even in the most demanding and competitive market! The 2010 Hainan 66’ (20.04 meter) Flybridge Motor Yacht should be seriously considered, if starting a new product line or adding to your existing line of quality Yachts, being sold in Asia or abroad.

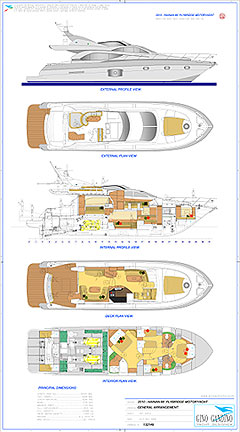

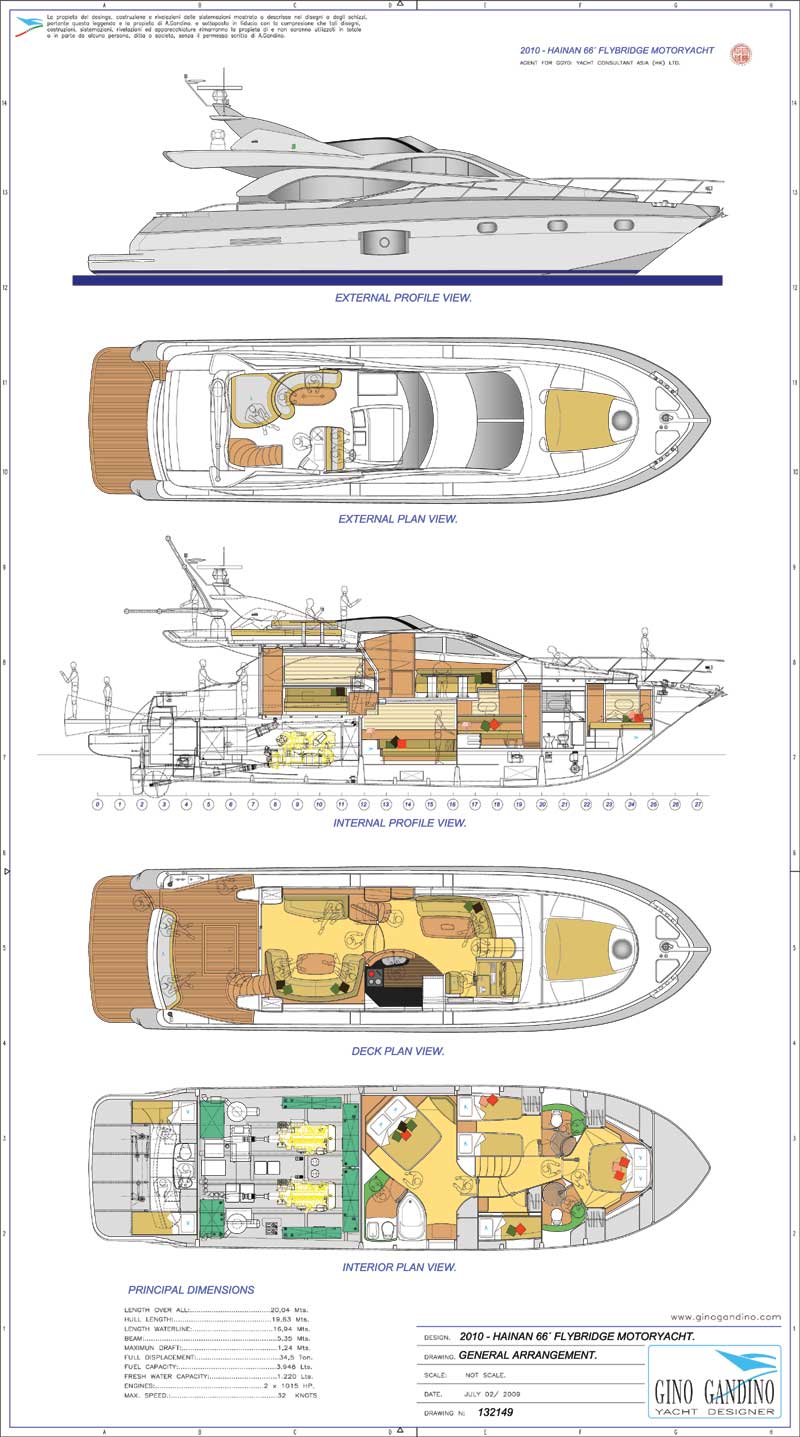

    General Arrangements / Specifications

    Principal Characteristics

    • Length Overall: 20.04 m (65ft 9inch)
    • Hull Length: 19.63 m (64ft 5in)
    • Length Waterline: 16.94 m (55ft 7in)
    • Beam: 5.35 m (17ft 7inch)
    • Maximum Draft: 1.24 m (4ft 1inch)
    • Full Displacement: 34.5 ton (76059 lb.)
    • Fresh Water Capacity: 1220 L (322 US gal.)
    • Fuel Capacity: 3948 L (1043 US gal.)
    • Engines: Twin × 1015 hp
    • Max. Speed: 32 Knots

    Important Features

    • Staterooms: 3 plus Crew
    • Heads: 3 ensuite with showers
    • Crew's Qtrs: Aft with w/c
    • Modern Galley with upper cabinetry
    • Forward deck Sun tanning Bed
    • Big Cockpit with Settee for 6
    • Roomy Fly Bridge with seating for 10
    • Highly Stylized Radar Arch
    • Fly Bridge Wet Bar and Nav.Station

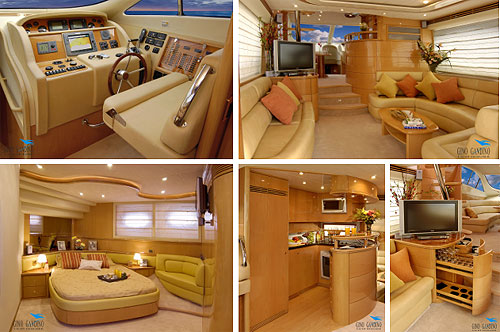

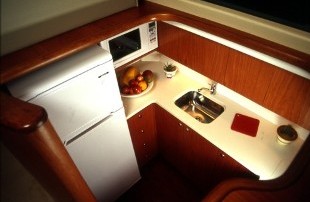

    Earlier Version Interior Photos:

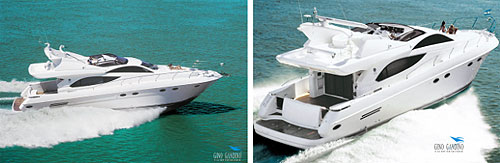

    Earlier Version Exterior Photos:

    This design package comes completed and ready for Yacht planning and production now.

    For further general information or terms regarding OPEN or EXCLUSIVE ownership the Hainan 66’ (20.04 meter) Flybridge Motor Yacht design package, please contact us by e mail or fax.

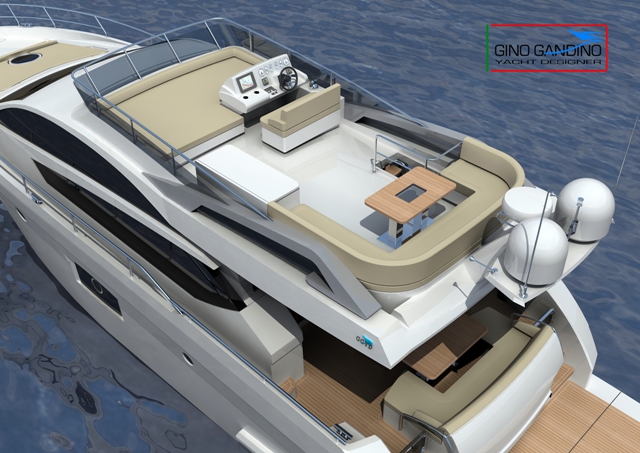

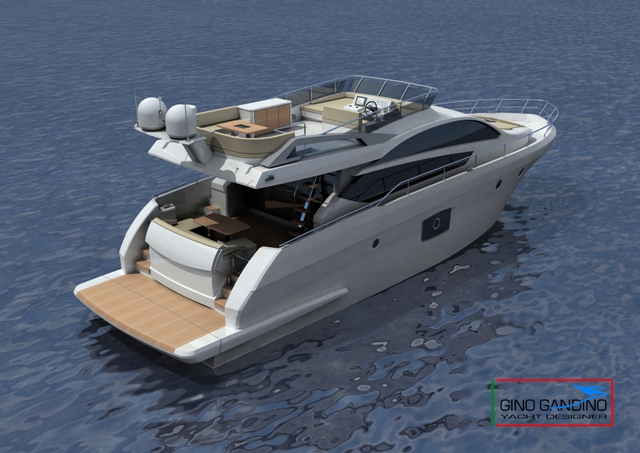

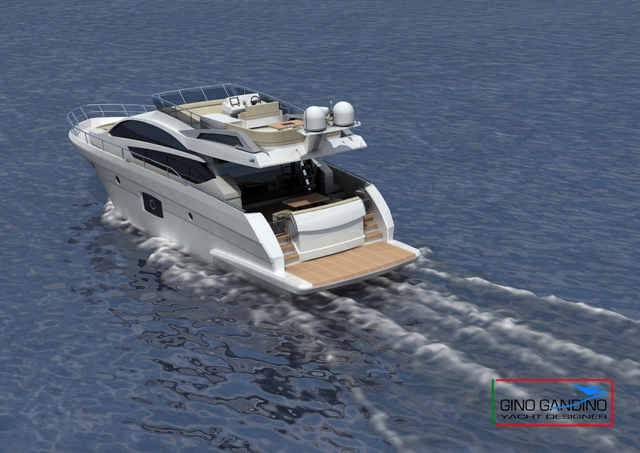

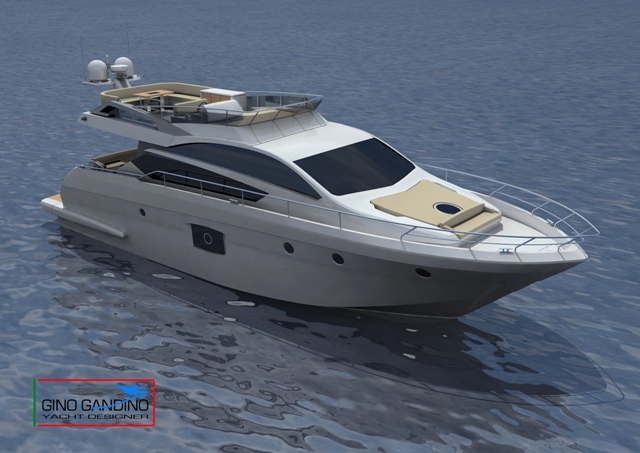

    The 2012- IMPERIA 62ft Flybridge Motor Yacht

    YCA (HK) Ltd. is exited to offer another new design by Italian Gino Gandino Design Team, located in Buenos Aries. As you can see by the preliminary General Arrangements  and Exterior/Interior Renderings below, the 62ft design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will “fast forward” your production and Marketing abilities.

    This design package will require 1 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.

    General Arrangements  and Principal Characteristics

    Click here for larger format PDF download

    Principal Characteristics:
    • Length Overall : 18.55 m
    • Beam Overall: 5.27m
    • Draft: 1.38m
    • Displacement: 27Tn
    • Fresh Water Capacity : 800L
    • Fuel Capacity : 2800L
    • Engines: 2 X Volvo IPS 900
    • Max. Speed: 31.5 Knots.
    • Cruising Speed: 27 Knots.
    Important Features:
    • Staterooms / Ensuite Heads: 3
    • Modern Galley with upper / lower cabinetry
    • Big Cockpit with Settee in U
    • Forward and Aft Sun beds
    • Main Deck Salon with 2 large Settees, Table for at least 6, Wet Bar, Nav. Station
    • Highly Stylized Radar Arch and Retractable Sunroof
    • Roomy Raise / Lower Swim Platform
    • Crew cabin with Head

    Exterior Renderings:

    Interior Renderings:

    We will have the complete design package of the IMPERIA ready for your turn-key production when within 1 month to translate the file from Italian / Spanish to English.

    For further general information or terms regarding IMPERIA 62 Flybridge Motor Yacht, please contact us by email or fax.


    The 2011 Pescara 610 Convertible Motor Yacht

    YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino’s Design Team, in Buenos Aries. As you can see by the preliminary General Arrangements  and Renderings below, the Pescara 61’ design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will “fast forward” your production and Marketing abilities.

    This design package will require 5-6 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.

                                                                                   General Arrangements / Specifications

                                                                                       Principal Characteristics

    • Length Overall: 19.75 m ( 61ft )
    • Beam: 5.90 m (19ft  36 inch)
    • Draft: 1.65 m (5ft 4inch)
    • Displacement: 35 ton (70,000 lb.)
    • Fresh Water Cap.: 1500l (396US gal.)
    • Fuel Capacity: 4500l (1189 US gal.)
    • Engines: 2 X 1100hp

    Important Features

    • Staterooms: 3 plus Crew
    • Heads: 3 ensuite with showers
    • Crew’s Qtrs: Aft with w/c
    • Modern Galley with upper cabinetry
    • Forward deck Sun tanning Bed
    • Big Cockpit with Settee for 6
    • Roomy Fly Bridge with seating for 10
    • Fly Bridge Wet Bar and Nav.Station
    • Highly Stylized Radar Arch
      Vertical hullside windows






                           Click to make larger

      Still in the design stage, the Pescara 61’ awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!

    This base design package can be ready to start Yacht production within 1 months and will be completed in 5-6 months

    For further general information or terms regarding EXCLUSIVE ownership of 2011-Pescara 610 Convertible Motor Yacht design package, please contact us by e mail or fax.


    The 2010 VULCANO 60' (18.37m) Hardtop Sport

    YCA (HK) Ltd. is pleased to offer this great new design by Italian Gino Gandino Yacht Design. As you can see by the preliminary Profiles and General Arrangements below, the VULCANO 60’ Hardtop Sport Yacht offers modern the very latest in European Styling, a well thought out Interior Arrangement with the emphasis placed on eligance and performance. Big and realiable twin Man Diesel engines developing over 2200HP create a top speed of over 37knots.

    GGYD’s design quality and detail will “fast forward” your production and Marketing abilities.

                                                                                           General Arrangements / Specifications

    Principal Characteristics

    • Length Overall: 18.37 m (60ft 3 in.)
    • Beam: 4.75 m (15ft 7in.)
    • Draft: 1.28 m (4ft 3in.)
    • Displacement: 28 tn (61,740 lb)
    • Fresh Water Capacity: 600 L (158 US gals)
    • Fuel Capacity: 3000 L (792 US gals)
    • Engines: 2 × MAN V10-1100 HP
    • Speed maximum: 37 Knots

    Main Characteristics

    • Large Tanning Bed on forward deck
    • Full hardtop with optional overhead Skylight/Louvers
    • Interior portside Helm Station
    • Salon up with L shaped Settee and Hi/Lo Table on Port side.
    • Settee on Stbd side
    • Curved Sliding glass door from Salon to Aft Deck
    • Large settee/table and wet bar with electric barbecue/wet bar and  dining area on aft deck.
    • Boat Garage and Stbd side Passerrelle
    • Full walk around deck.
                    Click to make larger

    • Large Swim Platform.
    • Full width ensuite Owners Stateroom with hanging locker and vanity/desk.
    • Well equipped Galley on Starb.side.
    • Double berth guest stateroom next to full washroom and shower.
    • Ensuite VIP Stateroom forward.

    Still in the preliminary design stage, the Vulcano 60’ Hardtop Sport Yacht would enjoy final input from its future builder for some branding or cosmetic details, or the OK to proceed just as she is!

    For further general information or terms regarding EXCLUSIVE use of The 2010 Vulcano 60'(18.37m)Hardtop Sport design package, please contact us by e mail or fax.


    The 2010 VARESE 58' (17.78 meter) Flybridge Motor Yacht

    YCA (HK) Ltd. is pleased to offer this great new design by Italian Gino Gandino Yacht Design. As you can see by the preliminary Profiles and General Arrangements below, the VARESE 58’ Flybridge Motor Yacht offers modern the very latest in European Styling, a well thought out Interior

                                                                                        General Arrangements / Specifications

    Principal Characteristics

    • Length Overall: 17.78 m (58ft 4in)
    • Hull Length: 17.40 m (57ft 1in)
    • Beam: 4.85 m (15ft 9in)
    • Draft: 1.28 m (4ft 3in)
    • Displacement: 26 tn (57,270 lb)
    • Fresh Water Capacity: 700 L (185 US gals)
    • Fuel Capacity: 2880 L (760 US gals)
    • Engines: VOLVO Penta IPS 800

    Main Characteristics

    • Staterooms: 3 plus Crew
    • Heads: 3 ensuite with showers
    • Crew's Qtrs: Aft with w/c
    • Modern Galley with upper cabinetry
    • Forward deck Sun Tanning Bed
    • Big Cockpit with Settee for 6
    • Roomy Fly Bridge with seating for 10
    • Fly Bridge Wet Bar and Nav. Station
    • Highly Stylized Radar Arch
    • Vertical hullside windows

      Still in the preliminary design stage, the Varese 58Flybridge Motor Yacht would enjoy final input from its future builder for some branding or cosmetic details, or the OK to proceed just as she is!
                 Click to make larger

    For further general information or terms regarding EXCLUSIVE use of The 2010 Varese 58' (17.78m) Flybridge Motor Yacht design package, please contact us by e mail or fax.


    The Orient Express 58' Fly Bridge Motor Yacht

    YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino Yacht Design (Italy). As you can see by the preliminary General Arrangements and Renderings below, the Orient Express 58' design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will "fast forward" your production and Marketing abilities.

    This design package will require 6-7 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.

    General Arrangements / Specifications

    Principal Characteristics

    • Length Overall: 17.50 m (57ft 5inch)
    • Beam: 4.85 m (15ft 9inch)
    • Draft: 1.28 m (4ft 3inch)
    • Displacement: 26 ton (5,270 lb.)
    • Fresh Water Cap.: 700l (185US gal.)
    • Fuel Capacity: 2800l (740 US gal.)
    • Engines: Twin Volvo Penta D- 12
    • Bow Thruster

    Important Features

    • Staterooms: 3 plus Crew
    • Heads: 3 ensuite with showers
    • Crew's Qtrs: Aft with w/c
    • Modern Galley with upper cabinetry
    • Forward deck Sun tanning Bed
    • Big Cockpit with Settee for 6
    • Roomy Fly Bridge with seating for 10
    • Fly Bridge Wet Bar and Nav.Station
    • Highly Stylized Radar Arch
    • Vertical hullside windows

    Sample Plug / Mould Setup Renderings:

    Sample Plug / Mould Setup Renderings

    Sample Hull Form Renderings:

    Sample Hull Form Renderings

    Still in the design stage, the Orient Express 58' awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!

    This design package can be completed and ready for Yacht production within 6-7 months.

    For further general information or terms regarding EXCLUSIVE ownership of Orient Express 58' Fly Bridge Motor Yacht design package, please contact us by e mail or fax.


    The SanYa 55' Fly Bridge Motor Yacht

    YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino Yacht Design (Italy). As you can see by the preliminary General Arrangements and Renderings below, the SanYa 55' design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will "fast forward" your production and Marketing abilities.

    This design package will require 1-2 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.

    General Arrangements / Specifications

    Principal Characteristics

    • Length Overall: 16.75 m (55ft 0inch)
    • Beam: 4.75 m (15ft 7inch)
    • Draft: 1.35 m (4ft 5inch)
    • Displacement: 24 ton (52.865 lb.)
    • Fresh Water Cap.: 650l (170US gal.)
    • Fuel Capacity: 2500l (660 US gal.)
    • Engines: Volvo D- 12 715HP

    Important Features

    • Staterooms: 3 plus Crew
    • Heads: 3 ensuite with showers
    • Crew's Qtrs: Aft with w/c
    • Modern Galley with upper cabinetry
    • Forward deck Sun tanning Bed
    • Big Cockpit with Settee for 6
    • Roomy Fly Bridge with seating for 10
    • Fly Bridge Wet Bar and Nav.Station
    • Highly Stylized Radar Arch
    • Vertical hullside windows





    Exterior Rendering Samples

    Exterior Rendering Samples

    Interior Sample Renderings

    Interior Sample Renderings

    Sample of Structure Drawings

    Sample of Structure Drawings

    Still in the design stage, the SanYa 55' awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!

    This base design package can be completed and ready to start Yacht production within 1-2 months.

    For further general information or terms regarding EXCLUSIVE ownership of SanYa 55' Fly Bridge Motor Yacht design package, please contact us by e mail or fax.


    The Vesubio 52' After Cabin

    YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino’s Design Team, in Buenos Aries. As you can see by the preliminary General Arrangements  and Renderings below, the Vesubio 52’ design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will “fast forward” your production and Marketing abilities.
    This design package will require 5-6 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.

                                            General Arrangements / Specifications

                                                                                                               Principal Characteristics

    •    Length Overall: 16.28 m ( 53ft )
    •    Hull Length:14.85m(48ft)
    •    Beam: 4.80m (15ft  8.9inch)
    •    Drought:2.63m(8ft)
    •    Draft: 1.55m (5ft  1.02inch)
    •    Half Load Displacement: 22.5ton (49604lb.)
    •    Water Cap.: 980l (258US gal.)
    •    Fuel Capacity: 2750l (726 US gal.)
    •    Engines: 2 X 500hp





                                Click to make larger

    Still in the design stage, the Vesubio 52’ awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!
    This base design package can be ready to start Yacht production within 1 months and will be completed in 5-6 months
    For further general information or terms regarding EXCLUSIVE ownership of The-Vesubio 52'After Cabin design package, please contact us by e mail or fax.

    Exterior Photos:








    The 2011- Ravenna 50' Flybridge

    YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino’s Design Team, in Buenos Aries. As you can see by General Arrangements and Renderings below, the Ravenna 50’ design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will “fast forward”your production and Marketing abilities.
    This design package will require 1 month to complete translation from Italy / Spain to English, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.

                                   General Arrangements / Specifications


       Principal Characteristics


    •    Length Overall: 15.68 m ( 51ft )
    •    Beam: 4.50m (14ft  9inch)
    •    Draft: 1.4m (4ft 7inch)
    •    Displacement: 18ton (39683lb.)
    •    Fresh Water Cap.: 660l (174 US gal.)
    •    Fuel Capacity: 1900l (501 US gal.)
    •    Engines: Volvo D-9(575HP)







                        Click to make larger

     We will have the complete design package of the Ravenna 50' ready for your turn-key production within 1 month to translate the file from Italian / Spanish to English.

    For further general information or terms regarding Ravenna 50'  Flybridge Convertible Motor Yacht design package, please contact us by e mail or fax.

    Interior Photos:




    Exterior Photo:






    The 2011- Gaeta 48' Hardtop Sport

    YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino’s Design Team, in Buenos Aries. As you can see by the preliminary General Arrangements  and Renderings below, the Gaeta 480 design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will “fast forward” your production and Marketing abilities.

    This design package will require 5-6 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.

                                                   General Arrangements / Specifications

                                                                                                              Principal Characteristics

    •   Length Overall: 14.56 m (47ft )
    •   Length Of Hull:14.18m(1.5ft )
    •   Beam: 4.0m (13ft  1.inch)
    •   Draft: 1.02m (3ft 40inch)
    •   Weight: 15.5ton (34150lb.)
    •   Fresh Water Cap.: 400l (105US gal.)
    •   Fuel System: 1800l (475 US gal.)
    •   Holding Tank:150l (40 US gal.)
    •   Engines: 2 X 450hp





                              Click to make larger

    Still in the design stage, the Gaeta 480 awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!
    This base design package can be ready to start Yacht production within 1 months and will be completed in 5-6 months
    For further general information or terms regarding EXCLUSIVE ownership of 2011-Gaeta 480 Hardtop Sport design package, please contact us by e mail or fax.

     Exterior Sample Renderings:



     Interior Sample Renderings:





     Exterior Photos:








    The 2010 CARRARA 47' (14.56 meter) Fly Bridge Motor Yacht

    YCA (HK) Ltd. is pleased to offer this great new design by the Gino Gandino Design Team. As you can see by the preliminary General Arrangements and Renderings below, the CARRARA 47’ design package offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will “fast forward” your production and Marketing abilities.

                                                                                         General Arrangements / Specifications


    Click to make larger

    Principal Characteristics

  • Length Overall: 14.56m (47ft 9in)
  • Beam: 4.50m (14ft 9in)
  • Draft: 1.28m (4ft 3 in)
  • Displacement: 15.5 tn (34.140lb)
  • Fresh Water Capacity: 600L (160 US gals)
  • Fule Capacity: 1960L (518 US gals)
  • Important Features

  • Roomy Flybridge area with L shaped settee, large Tanning bed, Nav. table at upper Helm station.
  • Large Tanning bed on foredeck.
  • Roomy dining settee with Hi/Low table, Stbd. side Settee, Galley and Helm Station located on the main deck.
  • Ensuite Master Stateroom forward.
  • 2 double bunk Staterooms sharing Head with shower.
  • Step down Galley on the accommodation deck.
  • Large Exterior Settee located on the aft deck
  • Good sized Swim Platform.
  • Sample Hull Form Renderings:



    Still in the design stage, the CARRARA 47’ awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!

    This base design package can be completed within 6 months and ready to start mould buildings and market upon the purchasing contract is signed.

    For further general information or terms regarding EXCLUSIVE ownership of CARRARA 47’ Fly Bridge Motor Yacht design package, please contact us by email or fax.


    The 2010-Gandino 47' Flybridge Concept

    YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino’s Design Team, in Buenos Aries. As you can see by the preliminary General Arrangements   and Renderings below, the  New Concept 47’ design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will “fast forward” your production and Marketing abilities.

    This design package will require 4-5 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.

                                                                                        General Arrangements / Specifications

    Principal Characteristics

    • Length Overall: 14.30 m ( 46ft )
    • Beam: 4.5 m (14ft  9 inch)
    • Draft: 1.28 m (4ft 3inch)
    • Displacement: 17 ton (37,450 lb.)
    • Fresh Water Cap.: 600l (160US gal.)
    • Fuel Capacity: 1960l (518 US gal.)
    • Engine: 2 X Volvo IPS600.

    Important Features

    • Staterooms: 3 plus Crew
    • Heads: 3 ensuite with showers
    • Crew’s Qtrs: Aft with w/c
    • Modern Galley with upper cabinetry
    • Forward deck Sun tanning Bed
    • Big Cockpit with Settee for 6
    • Roomy Fly Bridge with seating for 10
    • Fly Bridge Wet Bar and Nav.Station
    • Highly Stylized Radar Arch
      Vertical hullside windows

                            Click to make larger

     Still in the design stage, New Concept  47’ awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!

    This base design package can be ready to start Yacht production within 1 months and will be completed in 4-5 months

    For further general information or terms regarding EXCLUSIVE ownership of 2011- New Concept 47’ Motor Yacht design package, please contact us by e mail or fax.


    The 2010 NEPTUNO 42' (14.03 m) HARDTOP SPORT

    YCA (HK) Ltd. is pleased to offer this remarkable new design by the Gino Gandino Design Team. As you can see by the Profiles and General Arrangements below, the NEPTUNO 42’ HARDTOP design package offers modern European Styling and luxurious comfort, and protection from the elements when needed.

    The 2010 NEPTUNO 42’ offers creative use of a much larger interior space, adding a well thought out covered Hardtop Arrangement. We feel this vessel is well suited for any market region. This drawings package offers a very high level of detail that that will enhance your Production and Marketing abilities.

                                                                                        General Arrangements / Specifications

    Principal Characteristics

    • Length Overall: 14.03 m
    • Hull Length: 12.42 m
    • Length Waterline: 10.86 m
    • Beam: 4.15 m
    • Draft (To Propeller): 1.20 m
    • Displacement: 15.0 Ton.
    •  Fuel Capacity: 1200 Lt
    • Water Capacity: 600 Lt
    • Engines: 2 × VOLVO PENTA IPS600

    General Arrangement

    • Accommodation for 4-6 in 2 ensuite Staterooms
    • Spacious Step down Galley with Upper and Lower cabinetry and appliances.
    • Formal Dining Room
    • Port side Salon Settee
    • Stbd. Side L shaped Salon Settee.
    • Spacious Interior Helm Station
    • Spacious Cockpit/ Entertainment area with table and wet bar available.
    • Step down full width Swim platform
    • Forward Tanning Beds for at least 2
    • Walk around side decks for easy access everywhere.

                     Click to make larger

    Still in the preliminary design stage, the Neptuno 42’ Hardtop Sport would enjoy final input from its future builder for some branding or cosmetic details, or the OK to proceed just as she is!

    For further general information or terms regarding EXCLUSIVE use of The Neptuno 42' Hardtop Sport design package, please contact us by e mail or fax.


    The Shanghai 42' (12.52 meter) Open Sports Cruiser.

    This Gino Gandino Yacht Design / Yacht Consultants Asia (HK) Ltd. complete design package is professionally designed and engineered for Euro styling and optimum "tunnel hull" performance.

    As with our other "turnkey" design and engineering packages, it represents a valuable opportunity to any yacht manufacturing company or individual, seriously interested in developing or increasing a high quality YACHT product line. The total design has just been completed and available now, allowing marketing, estimating, procurement and production to start immediately.

    Principal Characteristics

    • Sleek Italian styling combined with high performance.
    • Length Overall: 12.52m (41ft)
    • Beam: 3.85m (12ft 2 in)
    • Draft: 0.98m (3ft 2 in)
    • Weight: 7600kg. (20362 lb)
    • Fresh Water Capacity: 300 L (80 US gals)
    • Fuel Capacity: 800 L (211 US gals)
    • Engine Option 1(as drawn): 2 X 300 HP.Diesel
    • Speed: 35 Knots
    • Engine Option 2 (as drawn): 2 X IPS 450
    • Speed: 37 Knots
    • AutoCAD and Rhino Drawings are available on CD-Rom, ready for your plotter.
    • .65 meter (1:19) scale, professionally built FRP Yacht Model included.
    • High quality marketing Renderings are included.
    •



    • EXCLUSIVE ownership of this design is available, as an Option.
    • Ongoing support from Yacht Consultants Asia (HK) Ltd and Gino Gandino Yacht Designer is available, as an Option.

    Please contact us for a Microsoft Power Point Presentation of the Shanghai 42' Open Sports Cruiser, available in English or Chinese.


    The 2010 CATANIA 42' (12.52m) Open Motor Yacht

    YCA (HK) Ltd. is pleased to offer this freshly updated design by Italian Gino Gandino Yacht Design. As you can see by the preliminary Profiles and General Arrangements below, the CATANIA 42’ Open Motor Yacht offers modern the very latest in European Styling, and a very well thought out Interior.

                                                                                            General Arrangements / Specifications

    Principal Characteristics

    • Length Overall: 12.52 m (41ft)
    • Hull Length: 11.98 m (39ft 7in)
    • Beam: 3.85 m (12ft 7in)
    • Draft: 0.98 m (3ft 2in)
    • Displacement: 7,600kg (20,362 lbs)
    • Fresh Water Capacity: 300 L (80US gals)
    • Fuel Capacity: 800 L (211 US gals)
    • Engines: 2 * 250 HP Diesel

    Main Characteristics

    • Staterooms: 2 plus
    • Heads:1 plus Shower
    • Modern lower Full Galley with upper cabinetry
    • Large forward deck Sun Tanning Bed
    • L Shaped Settee (Nav. Station.
    • Big U shaped Settee for 6
    • Double settee at Helm Station
    • Upper Wet Bar/ Service Counter
    • Fly Bridge Wet Bar and Nav. Station
                     Click to make larger

    • Ample Storage behind Aft Settee
    • Highly Stylized Radar Arch

    Still in the preliminary design stage, the Catania 42’ Open Motor Yacht would enjoy final input from its future builder for some branding or cosmetic details, or the OK to proceed just as she is!

    For further general information or terms regarding EXCLUSIVE use of The 2010 Catania 42' (12.52m) Open Motor Yacht design package, please contact us by e mail or fax.


    The Zhuhai 40' Express Cruiser

    We are pleased to offer this new design by Gino Gandino Yacht Design (Italy). As you can see by the optional preliminary General Arrangements and renderings below, the Zhuhai 40' Express Cruiser offers highly desirable modern European Styling, well thought out interior arrangement, and exterior planning.

    This original design package will require 4-5 months to complete, offering the buyer maximum input from a cosmetic design and equipment selection opportunity.

    General Arrangements

          click to view high resolution image
    Option 1
    Click to make larger
         click to view high resolution image
    Option 2
    Click to make larger

    Principal Characteristics:

    • Length Overall: 42' (12.9m)
    • Length of Hull: 40' (11.95m)
    • Beam: 12' 2'' (3.7m)
    • Draft: 2' 11'' (0.9m)
    • Weight Full: 20000lbs (9000kg)
    • Fuel System: 277 US. Gals (1050 lts.)
    • Fresh Water: 92 US. Gals (350 lts.)
    • Engine Options: 2 X Volvo Penta D6-370 hp
                                 2 X Volvo Penta IPS 500 hp

    Sample Renderings:

    Zhuhai 40' Express Cruiser Sample Renderings

    This design package can be completed and ready for Yacht production within 4-5 months.

    For further general information or terms regarding EXCLUSIVE ownership of The Zhuhai 40' Express Cruiser design package, please contact us by e mail or fax.

    The 2012- Cagliari 13.8 Meter (40 ft) Fly Bridge Motor Yacht

    YCA (HK) Ltd. is pleased to offer a very special design by Gino Gandino's Design Team, in Buenos Aries. As you can see by the preliminary General Arrangements and Renderings below, the 12.2 m design package, offers "state of the art" modern European Styling, with well thought out Interior Arrangements... with the ability or option to create custom arrangements and specific equipment selections, at your request.

    Although the complete design package will require 6-8 months to complete, lines and tooling detail can be available very soon, thereby "fast forwarding" your Production and Marketing abilities.

    General Arrangements & Principal Characteristics

    Rendering Samples - Exterior (click on each to make larger)

    Rendering Samples - Interior (click on each to make larger)



    Although fully designed, the Cagliari 13.8 Meter (40 ft) Fly Bridge Motor Yacht awaits final input from its future builder for some cosmetic or additional optional details, or is OK to proceed as is in this Standard Version.

    Marketing and Purchasing departments can be start immediately. This full design package is complete and ready to put onto the production floor.

    For further information or terms regarding GLOBAL EXCLUSIVITY of the 2012 - Cagliari 13.8 Meter (40 ft) Fly Bridge Motor Yacht design package , please contact us by e mail or fax.


    The 2012- San Remo 39ft Sport Motor Yacht

    YCA (HK) Ltd. is exited to offer another brand new design by Italian Gino Gandino Design Team, located in Buenos Aries. As you can see by the preliminary General Arrangements  and Renderings below, the 39ft design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will “fast forward” your production and Marketing abilities.This vessel includes Optional Twin Volvo IPS or Twin Volvo DP D6 Versions



    This design package will require 5-6 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.



     General Arrangements  and Principal Characteristics



    Principal Characteristics:
    • Length Overall : 12.43m
    • Beam Overall: 6.8m
    • Displacement: 94,000kg
    • Fresh Water Capacity : 2000L
    • Fuel Capacity : 10000L
    • Engines: 2 X Volvo Penta IPS 400
    • Or 2 X Volvo Penta DP D6 330HP



    Important Features:
    • Staterooms / Ensuite Heads: 2
    • Modern Galley with upper / lower cabinetry
    • Big Cockpit with Settee for 6-8
    • Forward and Aft Sun beds
    • Main Deck Salon with 2 large Settees, Table for at least 6, Wet Bar, Nav. Station
    • Highly Stylized Radar Arch and Retractable Sunroof
    • Roomy Raise / Lower Swim Platform







    Renderings:



     Still in the design stage, the San Remo 39ft awaits final input from its future builder for some cosmetic details, or the OK to proceed as is! This base design package can be ready to start Yacht production within 1 month and will be completed in 5-6 months. For further general information or terms regarding EXCLUSIVE ownership of 2012-San Remo 39ft Sport Motor Yacht design package, please contact us by e mail or fax.


    The HAIKOU 380 (11.68 meter) Open Sports Yacht

    This Gino Gandino Yacht Design / Yacht Consultants Asia (HK) Ltd. design package is professionally designed and engineered for Euro styling and optimum performance. This design meets RINA and CE approvals allowing extended (International) marketing capabilities.

    As with our other "turnkey" design and engineering packages, this design will represent a valuable opportunity to any yacht manufacturing company or individual, seriously interested in developing or increasing a high quality YACHT or product line. The total design has not been completed, allowing further input from the builder.

    General Arrangements / Specifications

    Principal Characteristics

    • Length Overall: 11.68 m (38ft 3in)
    • Length Waterline: 9.15 m (30ft 0in)
    • Beam: 3.75 m (12ft 3in)
    • Draft: 0.85 m (2ft 9in)
    • Displacement: 8.8 Ton (19400 lb.)
    • Fresh Water Cap.: 260 L (68 US gal.)
    • Fuel Capacity: 800 L ( US gal.)
    • Engines: 2 * Volvo Penta D6-330 / 370 DP.

    Still in the design stage, the Haikou380 Open Sports Yacht awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!

    This design package can be completed and ready for Yacht production within 6-7 months.

    For further information or terms regarding EXCLUSIVE or Non Exclusive ownership of this splendid design package, please contact us by e mail or fax.




    The HAIKOU 380 (11.68 meter) Hardtop Motor Yacht

    We are pleased to offer this new design by Gino Gandino Yacht Design (Italy). As you can see by the optional preliminary General Arrangements and renderings below, the HAIKOU 380 Hardtop Motor Yacht offers highly desirable modern European Styling, well thought out interior arrangement, and exterior planning. This design meets RINA and CE approvals allowing extended (International) marketing and technical acceptance, as well the ability to build a unique world class yacht in terms of styling.

    Being a completely new design package, it will require 6-7 months to complete, GGYD offers the buyer maximum input from a cosmetic design and equipment selection opportunity, should he chose.

    General Arrangements / Specifications

    Principal Characteristics

    • Length Overall: 11.68 m (38ft 3in)
    • Length Waterline: 9.15 m (30ft 0in)
    • Beam: 3.75 m (12ft 3in)
    • Draft: 0.85 m (2ft 9in)
    • Displacement: 9.0 Ton (19841 lb.)
    • Fresh Water Cap.: 260 L (68 US gal.)
    • Fuel Capacity: 800 L (211 US gal.)
    • Engines: 2 * Volvo Penta D6-330 / 370 DP.

    Still in the design stage, the Haikou380 Open Sports Yacht awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!This design package can be completed and ready for Yacht production within 6-7 months.

    For further information or terms regarding EXCLUSIVE or Non Exclusive ownership of the HAIKOU 380 Hardtop Motor Yacht design package, please contact us by e mail or fax.






    The Phoenix 38' (11.35 meter ) Fly Bridge.

    As a collaborative effort between Yacht Consultants Asia (HK) Ltd. and Gino Gandino Yacht Design, we are offering this completed Yacht design package, designed and engineered to a high standard.

    This "turnkey" design and engineering package, represents a valuable opportunity to any yacht manufacturing company or individual, seriously interested in developing or increasing a high quality YACHT product line.

    This drawing package will allow you to start marketing, estimating, procurement and production immediately.

    This Design Package / Specifications

    • Length Overall: 11.35 m (37 ft 3 in).
    • Beam: 3.75m (12 ft)
    • Draft: 0.9m (2ft 8in)
    • Weight (full): 10t (22046 lbs)
    • Fresh Water Capacity: 281 L (75 US gals)
    • Holding Tank Capacity: 107 L (28 US gals)
    • Fuel Capacity: 840 L (220 US gals)
    • Engine : 2 x 330 HP Cummins Diesel
    • Over 60 AutoCAD Drawings available on CD-Rom, ready for your plotter.
    • (1:15) scale, professionally built FRP Yacht Model included.
    • Marketing Renderings included.
    • Optional "Open Deck" arrangement available at extra cost.
    • EXCLUSIVE ownership of this design is available, as an Option.
    • Ongoing Marketing, Technical and Production support from Yacht Consultants Asia (HK) Ltd and Gino Gandino Yacht Designer is available, as an Option.



    For further information or terms regarding EXCLUSIVE or Non Exclusive ownership of this splendid design package, please contact us by e mail or fax.


    The SHEKOU 340 (11 meter) Sports & Cruiser Yachts

    This new Gino Gandino Yacht Design / Yacht Consultants Asia (HK) Ltd.  design package is professionally designed and engineered for Euro styling and optimum performance.

    Exact in exterior styling with only interiors varying, both Gas are designed with purpose in mind, The Cruiser version offers a  large permanent double berth forward and comfortable and dedicated saloon on the port side below, while  the Sports version offers a comfortable dining table/settee forward which converts to a double berth for comfortable sleeping.

    In typical GGYD/YCA fashion these vessels are designed to RINA standard and CE Approval, providing every opportunity for you to build a genuinely high quality vessel.

    As with our other "turnkey" design and engineering packages, the SHEKOU 340 represents a valuable opportunity to any yacht manufacturing company or individual, seriously interested in developing a high quality YACHT product line.

    General Arrangements / Specifications

    SHEKOU 340 Sport VersionClick to make larger SHEKOU 340 Cruising VersionClick to make larger

    Principal Characteristics

    √    Length Overall: 11.00 m (36ft 1in)
    √    Hull Length: 9.90 m (32ft 6in)
    √    Length Waterline: 7.95 m (26ft 1in)
    √    Beam: 3.40 m (11ft 2in)
    √    Displacement: 5.350 Ton (11795 lb.)
    √    Fresh Water Cap.: 180 L (48 US gal.)
    √    Fuel Capacity: 650 L (172 US gal.)
    √    Engines: 2 * Volvo Penta D6 - 330HP DP.

    Although marketing, estimating, procurement and production scheduling could start immediately, the total design has yet to be completed, requiring your brand input and 3-4 months to be ready for production,

    Note:  Pricing includes choice of one of either interiors only with the 2nd interior plan Option available as an added cost.

    For further information or terms regarding EXCLUSIVE or NON EXCLUSIVE ownership of either of these new SHEKOU 340 Open Motor Yacht design packages, please contact us by e mail or fax.


    The 2011- Pescara 34' Sport Cruiser

    YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino’s Design Team, in Buenos Aries. As you can see by the preliminary General Arrangements  and Renderings below, the Pescara 340 design package, offers modern European Styling, a well thought out Interior Arrangement, and tooling detail that will “fast forward” your production and Marketing abilities.

    This design package will require 5-6 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.



                                                  GeneralArrangements /Specifications

       Principal Characteristics

    •    Length Overall: 10.47 m ( 34ft )
    •    Beam: 3.40 m (11ft  1.8inch)
    •    Draft: 0.84 m (2.7ft 9inch)
    •    Displacement: 6 ton (13227 lb.)
    •    Fresh Water Cap.: 150L (39 US gal.)
    •    Fuel Capacity: 600L (158 US gal.)
    •    Engines: 2 X 300HP




                      Click to make larger

    Still in the design stage, the Pescara 340 awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!

    This base design package can be ready to start Yacht production within 1 months and will be completed in 5-6 months

    For further general information or terms regarding EXCLUSIVE ownership of 2011-Pescara 34' Sport Cruiser design package, please contact us by e mail or fax.

    Exterior Sample Renderings:



    Interior Sample Renderings:





    Earlier Version Exterior Photos:






    The 2010 PALERMO 28' (8.81 m) CRUISER CC

    This remarkable new design by the Gino Gandino Design Team. As you can see by the Profiles and General Arrangements below, the PALERMO 28’ design package offers the most modern Euro Styling and sensible comfort.

    The 2010 Palermo 28 offers creative use of the interior space, adding a well thought out partially covered Open Deck Arrangement. We feel this vessel is perfectly suited for the Middle East Gulf and south Asian lakes, rivers and coastal waters..

    This boat is cost effective and easy to build, using twin out board motors for propulsion. Port and Starboard drop down boarding gates are very unique.

    This drawings package offers a very high level of detail that that will “fast forward” your production and Marketing abilities.

                                                                                             General Arrangements / Specifications

    Principal Characteristics

    • Length Overall: 8.81 m (28ft 10 in)
    • Hull Length: 8.55 m (28ft 0 in)
    • Beam: 2.95 m (9ft 2 in)
    • Displacement: 3500 kg (7700 lb)
    • Fresh Water Capacity: 100 L (26 US gals)
    •  Fuel Capacity: 550 L (145 US gals)

    Important Features

    • Dining/ Berth Area Forward
    • Sleeps 4-5
    • Heads:1 below Stbd side
    • Crew's Qtrs: Aft with w/c
    • Modern Galley with upper and lower cabinetry
    • Upper Deck cooking and bar
    • Upper deck L shaped Settee with table
    • Drop down Boarding Gates.

    Still in the design stage, the 2010 Palermo 28’ invites final input from its future builder for some cosmetic details, or the OK to proceed as is!

    This base design package can be completed and ready to start Yacht production within 1-2 months.
                                Click to make larger

    For further general information or terms regarding EXCLUSIVE use of The 2010 Palermo 28’ Cruiser CC design package, please contact us by e mail or fax.


    The Geisha 28' (8.68 meter) Sport Cruiser

    As a collaborative effort between Yacht Consultants Asia (HK) Ltd. and Gino Gandino Yacht Design, we are offering this completed Yacht design package, designed and engineered to a high standard.

    This "turnkey" design and engineering package, represents a valuable opportunity to any yacht manufacturing company or individual, seriously interested in developing or increasing a high quality YACHT product line.

    This drawing package will allow you to start marketing, estimating, procurement and production immediately.





    Design Package / Specifications

    • Length Overall: 8.68 m (28ft)
    • Length of Hull: 7.60m
    • Length Water Line: 6.15m
    • Maximum Beam: 2.57m
    • Displacement (Full Load): 3350kg
    • Fuel Capacity: 420 L
    • Fresh Water Capacity: 104L
    • Over 75 AutoCAD Drawings available on CD-Rom, ready for your plotter.
    • Professionally built FRP Yacht Model (Scale 1:13) included.
    • Several high quality renderings, ready for marketing are included.
    • EXCLUSIVE ownership of this design is available, as an Option.
    • Ongoing Marketing, Technical and Production support from Yacht Consultants Asia (HK) Ltd and Gino Gandino Yacht Designer is available, as an Option.



    For further information or terms regarding EXCLUSIVE or Non Exclusive ownership of this splendid design package, please contact us by e mail or fax.




    The 2010 Rapallo 24' Express Cruiser

    YCA (HK) Ltd. is pleased to offer another great design by Gino Gandino Yacht Design (Italy). As you can see by the preliminary General Arrangements below, the Rapallo 24' Express Cruiser design package, offers modern European Styling, a well thought out Interior Arrangement, and design detail that will "fast forward" your production and Marketing abilities.

    This design package will require 3-4 months to complete, but offers the maximum in a cosmetic design and equipment selection opportunity, for the buyer.

                                                                                               General Arrangements / Specifications

                                                                                                    Principal Characteristics

    • Length Overall: 7.90 m (25ft 11inch)
    • Beam: 2.38m (7ft 9inch)
    • Fresh Water Capacity: 50 L
    • Fuel Capacity: 180 L

     Important Features

    • Staterooms: 2
    • Heads: 1
    • Modern Galley (Up)










                              Click to make larger

    Sample Photos:



    Still in the design stage, the Rapallo 24' Express Cruiser awaits final input from its future builder for some cosmetic details, or the OK to proceed as is!

    This design package can be completed and ready for Yacht production within 3-4 months.

    For further general information or terms regarding EXCLUSIVE ownership Rapallo 24' Express Cruiser design package, please contact us by e mail or fax.





    Yacht Consultants Asia (HK) Ltd. ©2007-2017 Yacht Consultants Asia (HK) Ltd. All Rights Reserved.   Admin Log in
    Email: info@yca-hk.com    Skype: yachtconsultantsasia
